Not All 0W-20 Oils Are Created Equal | PAO & Ester Formulas vs Conventional Synthetics

【2026/08/24】 Share

In 0W-20 ultra-low viscosity motor oils, the quality of the base oil determines the ceiling of the oil's performance. Most mass-market 0W-20 oils use Group III (Hydrocracked) base oils, while high-end formulations incorporate high percentages of Group IV (PAO) and Group V (Esters). Because 0W-20 oils inherently form a thinner oil film, the physical characteristics of the base oil are critical for anti-wear protection and high-temperature stability.

Base Oil Classifications & Features Comparison

Base Oil Type	Group	Manufacturing Process & Source	Viscosity Index (VI)	0W-20 Core Advantages	0W-20 Potential Drawbacks
Conventional Full Synthetic (HC/VHVI)	Group III	Severe hydrocracking & dewaxing of crude oil	~120–140	Cost-effective; balanced performance for daily commuting	Weaker high-temperature shear resistance; film may break under extreme limits
PAO (Polyalphaolefin)	Group IV	Synthesized from purified ethylene gas	~140–160	Extremely uniform molecular structure, strong anti-oxidation, excellent low-temp flow	Non-polar molecules; can cause rubber seals to shrink/dry out
Ester	Group V	Synthesized from animal/vegetable fats or synthetic acids & alcohols	Up to 150–200+	Strong polar adhesion to metal, exceptionally high HTHS & anti-wear capability	Expensive; hygroscopic (absorbs moisture) and prone to hydrolysis/acidification

Deep Dive: Core Differences in 0W-20 Applications

1. HTHS Shear Resistance Under High Temperatures & Stress

Conventional 0W-20 (Group III): Relies heavily on Viscosity Index Improvers (VI Improvers) to maintain low viscosity. These high-polymer molecules can easily shear (snap) under high stress (e.g., high RPM, heavy load), leading to permanent viscosity degradation and a thinned oil film that loses protective power.
PAO / Ester 0W-20: PAO features a highly stable molecular chain that resists deformation under high temps. Esters maintain superior shear stability even under extreme heat. Even at low 0W-20 viscosity, a PAO + Ester blend maintains a robust oil film during aggressive driving to prevent direct metal-to-metal contact.

2. Metal Adhesion & Cold-Start Protection (Polarity Differences)

Conventional 0W-20 & PAO: Both consist of non-polar molecules. When the engine sits overnight, gravity drains the oil back into the sump, leaving virtually no protective film on top-end components (like camshafts), which can lead to dry friction during the first 2–3 seconds of a cold start.
Ester 0W-20: Esters possess strong physical polarity—the molecules act like magnets, clinging tightly to metal surfaces. Even after sitting for days, a tough "magnetic oil film" remains on engine parts, enabling true zero-delay lubrication upon startup.

3. Evaporation Loss (NOACK) & Durability

Conventional 0W-20: Due to inconsistent molecular sizes, lighter molecules evaporate more easily at high temperatures (higher NOACK volatility), leading to higher oil consumption and carbon buildup over time.
PAO 0W-20: Features uniform molecular sizes with an extremely high boiling point and minimal evaporation loss. This significantly reduces high-temp volatility, minimizing sludge and carbon deposits caused by oil vapors.

The Blending Logic Behind High-End 0W-20 Oils

Top-tier motor oils rarely rely solely on PAO or Esters. Instead, they utilize a PAO + Ester + Group III multi-blend strategy:

Complementary PAO + Ester Dynamics: While PAO resists high temperatures well, it tends to cause rubber gaskets to shrink and harden. Esters cause rubber to slightly swell. Blending them at a precise ratio cancels out seal degradation and prevents oil leaks.
Additive Dissolution: PAO has poor solvency, making it difficult for anti-wear additives (like Organic Molybdenum / MoDTC) to dissolve evenly. Esters and Group III oils feature excellent solvency, ensuring anti-wear and detergent additives stay uniformly dispersed.

Which One Should You Choose?

Conventional Full Synthetic 0W-20 (Group III): Ideal for over 90% of daily commuters. It offers low cost, normal drain intervals (5,000–10,000 km / 3,000–5,000 miles), and satisfies all baseline OEM protection and fuel economy requirements.
PAO / Ester Formulated 0W-20: Best suited for modified vehicles, heavy-load driving, frequent high-RPM runs, or small-displacement turbocharged engines. It delivers the effortless acceleration and fuel savings of a 0W-20 while providing high-temperature limit protection comparable to a 0W-30 or 5W-30.

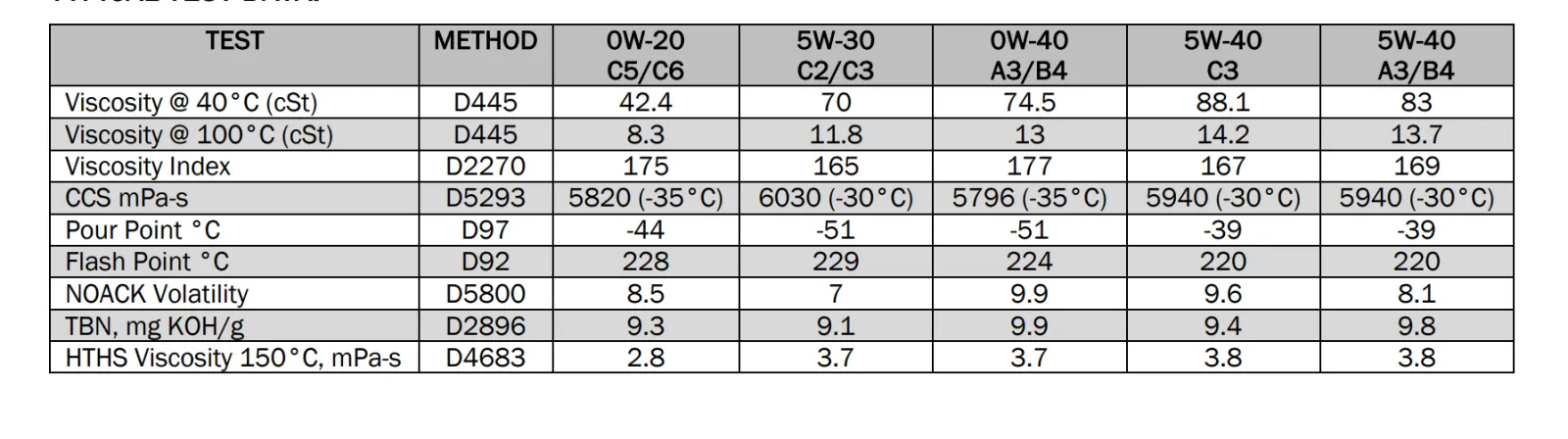

Reading the TDS (Technical Data Sheet): Reverse Engineering via Physical Parameters

If the SDS is unavailable, you can also analyze the physical data listed on the official Technical Data Sheet (TDS). PAO and Esters exhibit exceptional physical properties, allowing you to cross-reference the following four key metrics:

1. Pour Point — The Low-Temperature Limit

Conventional Group III (0W-20): The pour point typically ranges from -39°C to -45°C.
PAO / Ester Formulated (0W-20): The pour point can reach -50°C to -60°C or lower (since PAO contains virtually no wax, preventing low-temperature solidification).

2. NOACK Volatility (Evaporation Loss)

Conventional Group III (0W-20): NOACK volatility usually sits around 10% – 13%.
High-Percentage PAO (0W-20): NOACK is typically kept under 8% – 9.5% (due to a uniform molecular structure that resists high-temperature evaporation).

3. Viscosity Index (VI)

Conventional 0W-20: VI ranges from 160 to 175.
PAO / Ester 0W-20: VI often exceeds 180 – 200+ (maintaining high-temperature viscosity without relying heavily on excessive viscosity index improvers).

4. Flash Point

Conventional Group III (0W-20): Flash point ranges from 215°C to 225°C.
PAO / Ester 0W-20: Flash point is typically above 230°C – 240°C.
